Overview

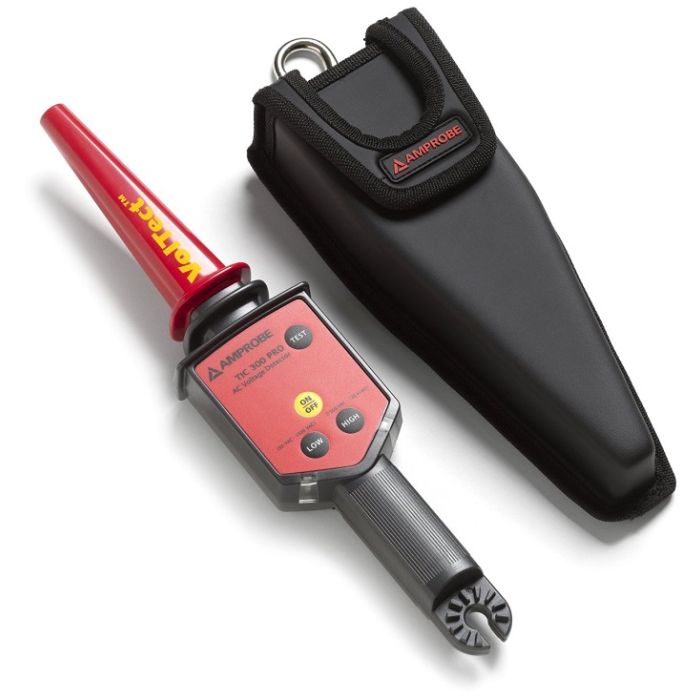

Amprobe TIC300 PRO High Voltage Detector
Available delivery in Dubai, Sharjah and Ajman in UAE. Contact us for delivery options in Abu Dhabi, Al Ain, Ras Al Khaimah, Fujairah and Umm Al Quwain in UAE.
The Amprobe TIC 300 PRO high voltage detector is a non-contact voltage detector for detecting alternating current (AC) on transmission lines, power distribution equipment,downed power lines,fuses, electrical outlets, and other powerlines.
It detects voltages in low, medium and high voltage applications (30-122kVAC) with bright visual and loud alerts.
It is rugged and reliable for utility, industrial, heavy manufacturing and mine safety applications.
The TIC tracers get thrown around in utility trucks, but the units are built to withstand the rough treatment.
The TIC 300 PRO has a low-voltage setting (30 to 1,500VAC) for checking voltage presence in breaker panels, breakers,power outlets and wiring.
The presence of AC voltage is indicated by an LED light and audible beeper. It is MSHA certified and intrinsically safe.
The TIC 300 PRO has a self-test that verifies the tester works properly and is drop-proof up to 6 feet.
MSHA certified and intrinsically safe, trusted by utility crews for over 20 years
Utility tool for checking transmission lines, power distribution equipment,down power lines, fuses, and load break connectors
Visual and audible voltage indication
High-voltage setting 1500 V ac to 122,000 V AC (with TIC 410A Hot Stick) for utility applications such as transmissions lines, power distribution equipment, down power lines,transformers and more.
Ergonomic design with a convenient handle
Specifications
TIC 300 PRO
Operating Voltage
LOW Range: 30 to 1500 VAC ,HIGH Range: 1500 VAC to 122 kV AC
*Use only with Amprobe optional accessory hot stick and proper safety equipment for voltages up to 122 kV AC
Operating Temperature
0°C to +52°C (32°F to +125°F);RH < 90% RH
Storage Temperature
0°C to +52°C (32°F to +125°F) battery removed.
Environment
< 2000m,outdoor operation
Power
9 volt alkaline battery
Power Consumption
OFF: 340uA,Low / High Detection mode: 39 mA
Duty Cycle
Continuous
Response Time
Instantaneous
Dimensions
345(L) x 75(W) x 47(H)mm (13.5 x 3.0 x 1.8 in)
Weight
243g (0.5 lb.)
Supplied with
User manual, battery and carrying case
RANGE
Non-Contact Voltage Detection
30-1500 VAC, 1500- 122,000 VAC (with Hot Stick TIC 410A)
